SAVACRANE® - NSHTOU PUR |
|
Drum reeling cable 0.6/1kv |
 |
| |
Construction |
|
|
| |
Conductor |
|
tinned copper wire VDE 0295 class5 |
| |
Insulation |
|
TPE |
| |
Core code |
|
up to 5core: color acc.to VDE0293 |
| |
|
|
7 and more: black cores with white number |
| |
Anti torsion braid |
|
textile meshed fabric |
| |
Stranding |
|
twisted in short lay |
| |
Sheath |
|
special pur |
| |
Sheath color |
|
on request |
| |
|
|
|
| |
Technical data |
|
|
| |
Nominal voltage |
|
Uo/U 600/1000V |
| |
Testing voltage |
|
3000V |
| |
Min. bending radius |
|
5 x d(O.D < 21.5mm) |
| |
|
|
6.25 x d(O.D >21.5mm) |
| |
Temperature range |
|
flexing : -25°C to +80°C |
| |
|
|
static : -45°C to +80°C |
| |
Fire performance |
|
IEC 60332-1 |
| |
Dynamic peak tensile stress |
|
25N/mm² |
| |
|
|
|
| |
Outstanding features |
|
|
| |
For drum reeling |
|
|
| |
Weatherproof |
|
|
| |
|
|
|
| |

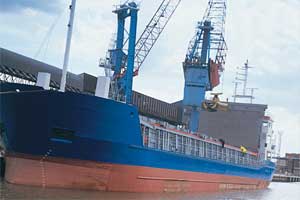

Application |
|
|
| |
hoist, conveyor, drum reeling, transportation system, powe chai |
| |
in door, outer door application |
|
|
| |
 |
| |
