H01N2-D |
|
The special cable for welding |
 |
| |
Construction |
|
|
| |
Conductor |
|
electrolytic annealed copper calss |
| |
|
|
D(HD22.6) |
| |
Separator |
|
Polyester tape |
| |
Sheath |
|
thermosetting rubber type EM5(HD22) |
| |
Sheath colour |
|
black |
| |
|
|
|
| |
Technical data |
|
|
| |
Nominal voltage |
|
100/100V |
| |
Testing voltage |
|
1000V |
| |
Min. bending radius |
|
4 x d |
| |
Temperature range |
|
-20°C to +85°C |
| |
Fire performance |
|
IEC 60 332-1 |
| |
Oil resistance |
|
good |
| |
Chem.resistance |
|
good |
| |
Weather resistant |
|
AD3 |
| |
Weather resistance / out door use |
|
good |
| |
Fire performance |
|
flame retardant IEC 60332-1 |
| |
|
|
|
| |
Outstanding features |
|
|
| |
VDE type : NSLFFOU |
|
|
| |
|
|
|
| |
Application |
|
|
| |

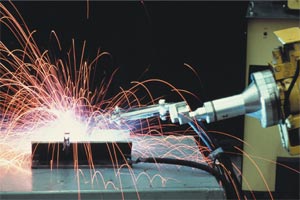

Arc welding machines |
|
|
| |
 |
| |
